XULU

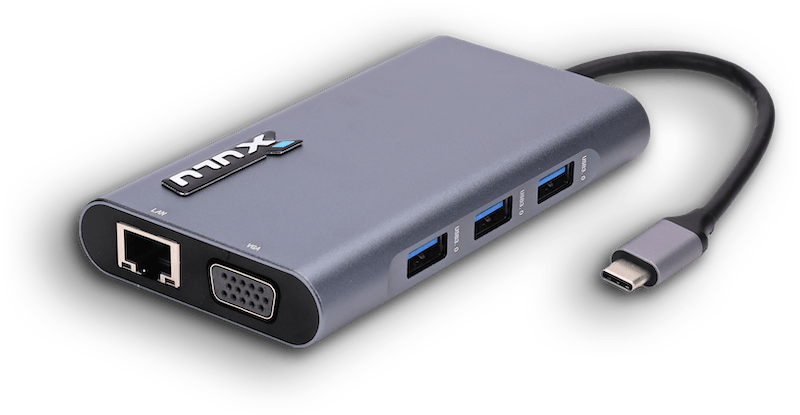

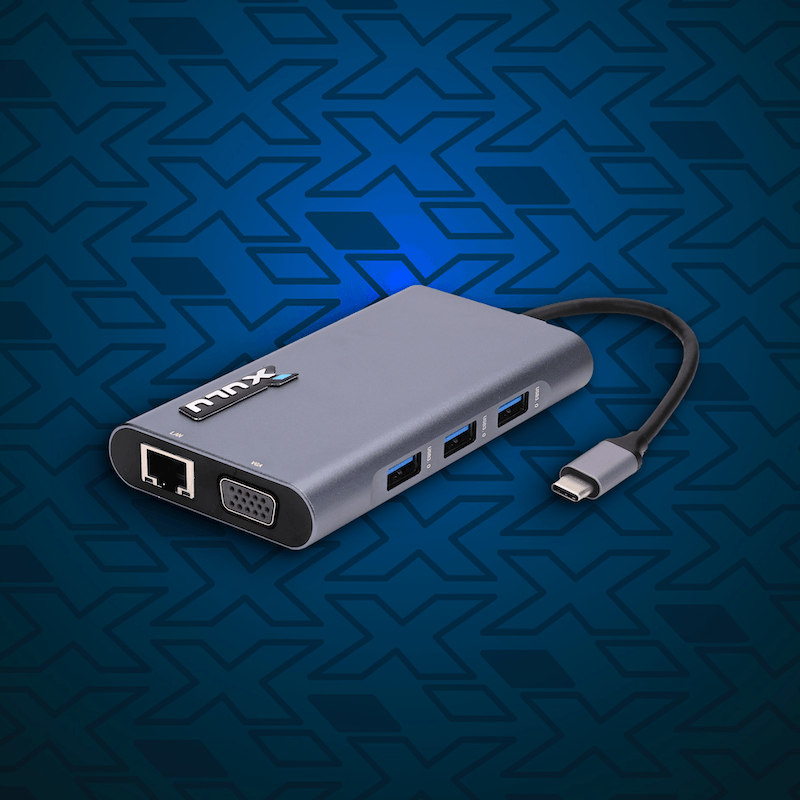

Xulu 10-in-1 Hub
Xulu 10-in-1 Hub
Couldn't load pickup availability
Xulu 10-in-1 Hub Description:

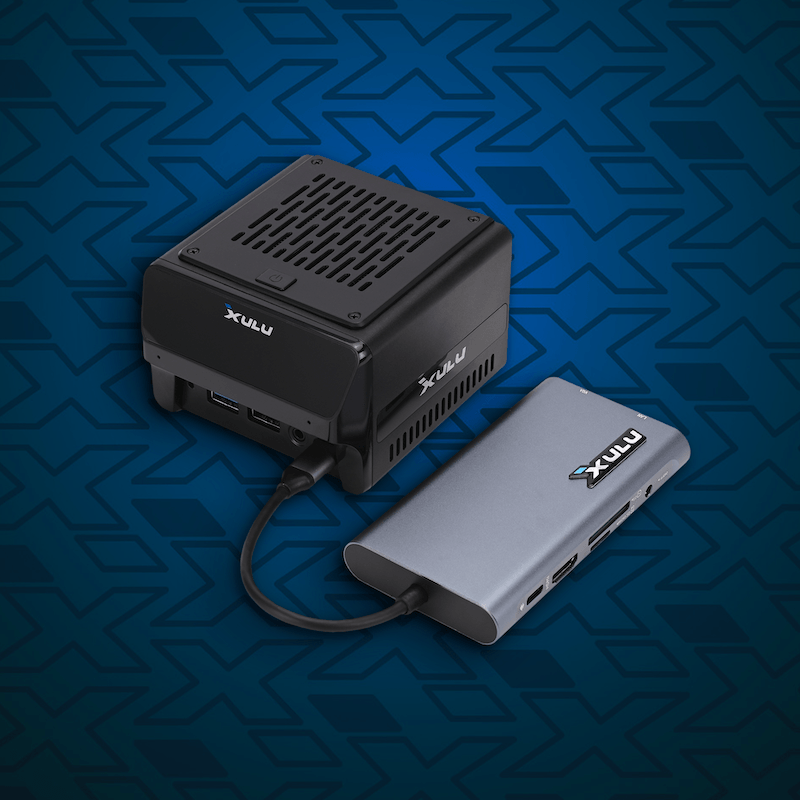

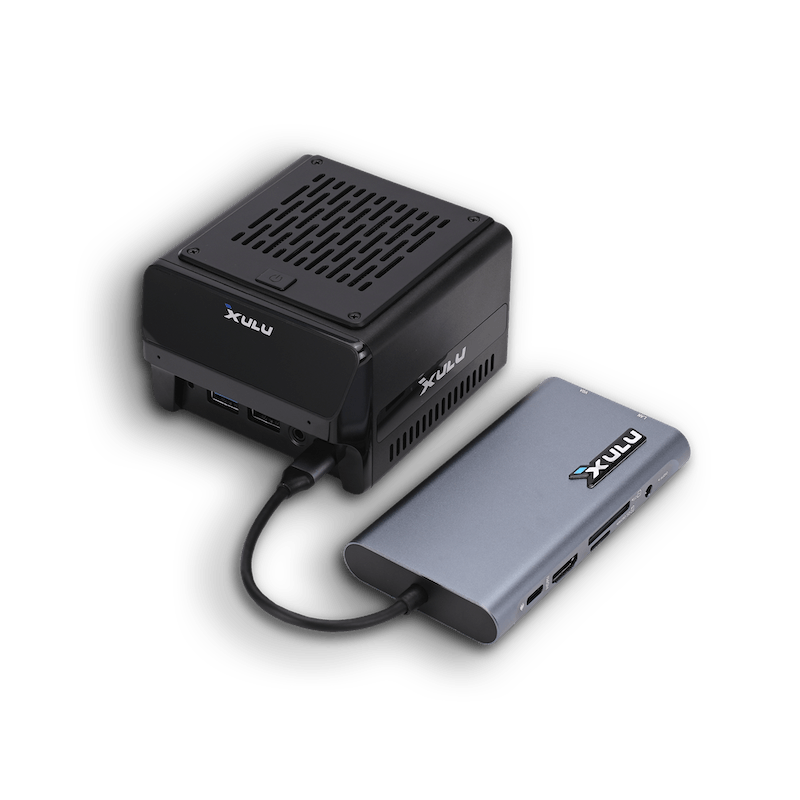

This hub is equipped with a multitude of features for every need. There are three USB3.0 ports, a Ethernet port, an HDMI port, a VGA port, a TF card slot, an SD card slot, and even a 3.5mm audio jack. Extend the capability of your Xulu XR1 PC with this aluminum body 10-in-1 hub.
Dimensions
115*62.3*17.6mm/4.53*2.45*0.66inch
Structure
|
No. |
Interfaces |
Description |
|
1 |
USB-C Connector x1 |
The USB-C connected to laptops, tablets, mobile phones, game consoles and other devices |
|
2 |
HDMI port x1 |
Display Resolution:4k@60Hz(only Video)/4k@30Hz(Video+USB3.0 data transfer) |
|
3 |
VGA port x1 |
Display Resolution: 1080P@60Hz |
|
4 |
USB 3.0 port x3 |
Total output power: 15W (5V@1.5A) Power output of up to 7.5W(5V1.5A for one port alone or 2 ports for PD adapter charging) |
|
5 |
Ethernet port X1 |
|
|
6 |
3.5mm Audio input x1 |
The headphone jack supports both a microphone and headphones |
|
7 |
TF&SD card slot x1 |
Compatibility: Micro SD, Micro SDHC, Micro SDXC, SD, SDHC and SDXC cards Capacity: 2TB(Max) Data Transfer Speed: Up to 60Mbps(480Mbps) |
|
8 |
USB-C Power Delivery port x1 |
Micro SD / SDHC (up to 128 GB) |
Packing List
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton
- Main unit x1
- User Manual x1
Operation
- Connect the USB-C male port of this product to Mac Book
- Connect the three USB3.0 ports to three USB devices
- Connect the HDMI port to HD display with one HDMI Cable
- Connect the VGA port to HD display with one VGA Cable
- Connect Gigabit Ethernet port of this product to Ethernet Router with an Ethernet cable
- Connect the Stereo port to earphone
- Insert Micro SD and SD/MMC cards into the card reader ports
- Connect the Type C charging port, it can charge for the Mac Book and support this adapter to work simultaneously
Note
- When the USB-C header of the expansion dock is connected to the device, the mouse connected to the USB 3.0 port will not work immediately, and there will be a delay of several seconds, which is a normal phenomenon
- When connecting this product to Chromebook, the VGA video signal may not appear on the screen of the VGA monitor under certain resolutions
- When plugging in and out the PD Adapter, the connected USB devices will get disconnected flashily and then reconnect in a few seconds, so to prevent possible data loss or corruption, avoid disconnecting the PD Adapter from AC power while transferring data
- When reading the large-capacity moving hard disk, please connect to the PD for charging
- The working temperature is about 45 C, which is a normal fever conditio
-
